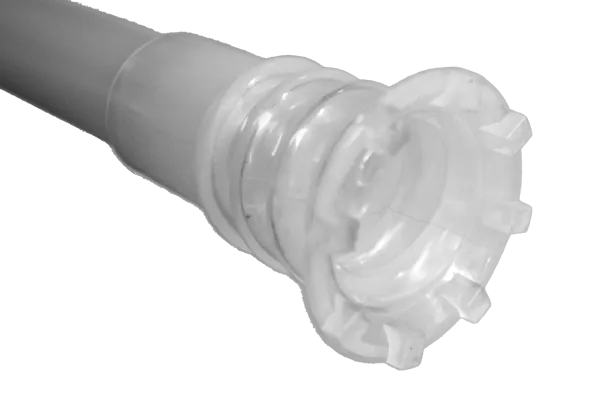

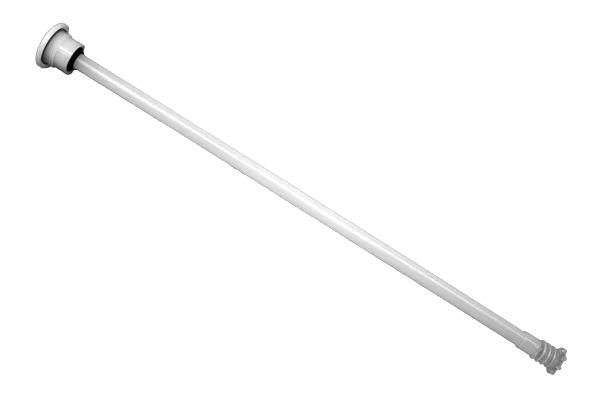

VARIBOX FC 1000 CDS extractor tube (white&round) Viton

Safe and Closed Chemical Dispensing

The VARIBOX FC 1000 CDS Extractor Tube Viton is designed for the safe and controlled dispensing of liquid chemicals from the VARIBOX FC 1000. As part of the VARIBOX Closed Dispensing System (CDS), the extractor tube creates a secure connection between the chemical inside the IBC and your pumping or dosing equipment.

The extractor tube is installed through the top of the VARIBOX and reaches the lowest point of the inner container. By connecting the corresponding CDS Coupler, a closed and leak-tight connection is created. This allows the chemical to be pumped directly from the VARIBOX into your process without opening the IBC during normal dispensing.

The result is a controlled chemical transfer process that helps minimise the risk of spills, direct chemical contact and exposure to potentially hazardous fumes.

Designed for Safer Chemical Handling

Safety is a fundamental part of the VARIBOX design. This does not stop at the transport and storage of chemicals. Safe connecting, dispensing and disconnecting are equally important when chemicals are used at their final destination.

The CDS Extractor Tube supports this approach by keeping the chemical contained throughout the dispensing process. When the corresponding coupler is connected, the system opens and allows the chemical to flow into the connected pumping or dosing equipment. After use, the coupler can be disconnected again.

This closed dispensing principle reduces unnecessary interaction between operators and the chemical and contributes to a safer and cleaner working environment.

Efficient Emptying with Low Chemical Residue

The design of the CDS Extractor Tube works together with the geometry of the VARIBOX FC 1000 inner container. The tube reaches the lowest point of the container, where the chemical is collected during emptying.

This enables efficient extraction and helps minimise the amount of chemical remaining inside the VARIBOX.

Low chemical residue provides both operational and environmental advantages. More of the chemical can be used, less product is left behind and the amount of chemical waste after emptying is reduced. Lower residual volumes can also reduce the effort and resources required for cleaning.

For valuable, hazardous or environmentally sensitive chemicals, efficient emptying is an important advantage throughout the supply chain.

A Complete Closed Dispensing System

The CDS Extractor Tube is designed to be used together with the corresponding VARIBOX CDS Coupler Viton. The coupler connects the VARIBOX to your hose, pump or dosing equipment and completes the closed transfer system.

Using original and matching VARIBOX components ensures that the different parts of the dispensing system are designed to work together. This creates a reliable connection from the IBC to the process while maintaining the closed dispensing principle.

The system is suitable for industrial environments where controlled chemical transfer, operator safety and reliable equipment are essential.

Viton Configuration with Aflas® Seals

This CDS Extractor Tube is intended for the Viton configuration of the VARIBOX FC 1000. The seals within the extractor tube itself are made from Aflas®, a fluoroelastomer selected for its chemical resistance properties.

Selecting the correct sealing configuration is important when working with chemicals. Compatibility depends on the specific chemical, its concentration, temperature and operating conditions. The chemical compatibility of all wetted components should therefore always be verified for the intended application.

Part of the VARIBOX Safety Concept

The CDS Extractor Tube is more than an individual component. It is an integral part of the VARIBOX concept for the safe transport, storage and handling of liquid chemicals.

VARIBOX solutions are developed around three core principles: Safer, Reusable and Sustainable.

Safer

VARIBOX is designed to help protect operators and the environment throughout the chemical supply chain. The closed dispensing system extends this safety concept to the moment the chemical is transferred from the IBC to the process.

By dispensing from the top through a closed connection, the CDS system helps minimise opportunities for spills, chemical contact and exposure to fumes during normal operation.

Reusable

The VARIBOX is designed as a durable, reusable IBC for demanding industrial chemical applications. A VARIBOX can remain in service for up to 10 years, subject to applicable inspections, maintenance and regulatory requirements.

This long service life makes VARIBOX particularly suitable for companies working with returnable packaging systems and repeated chemical deliveries.

Sustainable

Reuse and efficient emptying are important parts of the VARIBOX approach to sustainability. VARIBOX IBCs consist of 99% recyclable material and are designed for repeated use over many transport cycles.

The combination of long-term reuse and low chemical residue helps reduce packaging consumption, product waste and the resources required for cleaning and disposal. This supports a more circular and resource-efficient approach to chemical packaging.

Reliable Chemical Dispensing with VARIBOX

For industrial applications involving liquid chemicals, the way an IBC is emptied is just as important as the way the chemical is transported and stored.

The VARIBOX FC 1000 CDS Extractor Tube Viton provides a controlled connection between the VARIBOX and your process equipment. Closed dispensing helps improve operator safety, while efficient extraction helps minimise chemical residue and product waste.

Combined with the corresponding CDS Coupler and VARIBOX FC 1000, the extractor tube becomes part of a complete system developed for safer handling, long-term reuse and more sustainable chemical logistics.

Choose original VARIBOX components for a safe, reliable and efficient connection from container to process.
