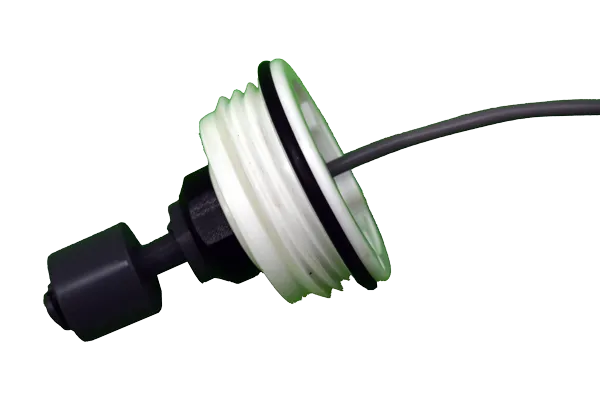

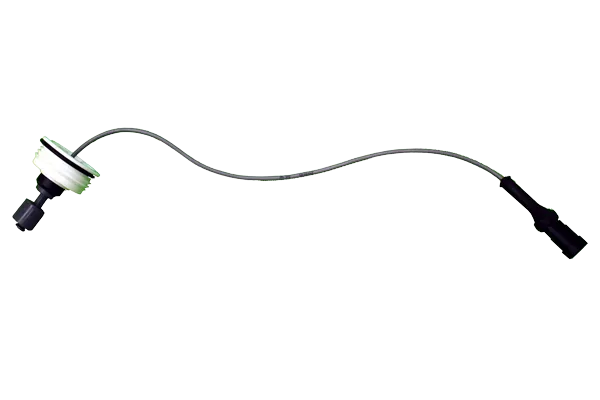

VARIBOX Full Level Sensor Viton

The VARIBOX Full Level Sensor Viton provides an automatic signal when the liquid inside the VARIBOX reaches the upper level of the container. This makes it possible to integrate filling status directly into your equipment or control system. A float switch positioned at the highest point of the VARIBOX detects when the liquid reaches the full level. The electrical circuit then opens, providing a signal that can be used by the connected installation, for example to switch off a filling pump. This provides a practical way to automate filling operations and helps prevent unnecessary overfilling of the VARIBOX.

Stop Filling at the Right Moment

Filling a chemical container requires accurate control. Continuing to pump product after the intended filling level has been reached can create unnecessary risks and operational problems. The Full Level Sensor provides an electrical indication when the VARIBOX has reached its defined upper level. Instead of relying solely on manual observation, your filling installation can use the sensor signal to respond automatically. For example, the signal can be incorporated into the control system to stop the filling pump when the required level is reached. The exact response depends on the configuration of your installation.

Float Switch at the Top of the Container

Unlike empty and low-level sensors, the Full Level Sensor monitors the upper part of the VARIBOX. The float switch is positioned at the highest point of the container. As the liquid level rises during filling, the product eventually lifts the float. This movement opens the electrical circuit and generates the full-level indication. For the VARIBOX FC, the official user guide describes the full-level sensor as switching when the container is almost full, with approximately 25 litres of capacity remaining. This provides a defined signal before the container reaches its absolute maximum capacity.

Make Filling Part of an Automated Process

The Full Level Sensor allows the VARIBOX to communicate its filling status directly to external equipment. Using the corresponding counter connector and connector set, the sensor can be connected to your control system. The Full Level Sensor uses a 3-pin connection, providing a dedicated interface for integration with the filling installation. This makes the sensor particularly valuable for operations where VARIBOX containers are filled regularly and a repeatable, controlled filling process is required. Rather than treating filling and packaging as separate activities, level detection can become part of the complete process control.

Fail-Safe Level Monitoring

Reliable signalling is important in automated filling applications. The VARIBOX level sensors use a fail-safe principle. The electrical circuit of the Full Level Sensor opens when the upper switching level is reached. The circuit also opens if the sensor cable is damaged. This means cable damage does not simply produce the same electrical state as normal filling operation. The official VARIBOX FC and CC documentation specifies a maximum switching voltage of 48 V and a maximum switching current of 0.5 A for the level sensors.

Viton Configuration

This version of the VARIBOX Full Level Sensor is manufactured using Viton, PE, PP and PVC. Selecting the correct material configuration is important when the sensor is used with chemicals. Suitability depends on the chemical being filled as well as its concentration, temperature and operating conditions. Always verify the compatibility of the complete configuration with the product being handled. A separate EPDM version of the Full Level Sensor is also available for applications requiring that material configuration.

One Sensor for Multiple VARIBOX Models

An important advantage of this Full Level Sensor is that it is not restricted to one VARIBOX capacity. The VARIBOX Full Level Sensor Viton is available for the VARIBOX FC 1000, FC 800 and CC 250. For organisations working with several VARIBOX models, this provides a consistent approach to full-level detection across different container sizes. The corresponding sensor connectors and counter connector are also used across these VARIBOX models, supporting straightforward integration into filling equipment.

Full, Low or Empty: Monitor the Level You Need

VARIBOX offers different sensor solutions depending on the information required from the container.

A Full Level Sensor is designed around the filling process and provides a signal when the upper level is reached.

A Low Level Sensor provides an advance warning during emptying while usable product is still available.

An Empty Level Sensor indicates when the container has been virtually emptied.

Selecting the appropriate sensor allows the VARIBOX to provide useful information at the relevant stage of your chemical handling process.

Supporting Safer and More Efficient Filling

The Full Level Sensor complements the VARIBOX philosophy of Safer, Reusable and Sustainable chemical packaging.

Safer

Automatic full-level detection can reduce reliance on manual monitoring during filling. By providing a signal to the connected control system, the sensor can support timely stopping of the filling process.

Reusable

VARIBOX containers are designed for repeated industrial use. Sensors and associated connection components can be maintained as individual parts of the system, supporting reliable operation throughout repeated filling and use cycles.

Sustainable

Accurate process control supports efficient use of reusable chemical packaging. Combining level detection with a reusable VARIBOX helps create a controlled filling process designed around long-term industrial use.

Know When Your VARIBOX Is Full

The VARIBOX Full Level Sensor Viton provides a direct connection between the liquid level inside your VARIBOX and the control system of your filling installation. By detecting the upper product level with a float switch, the sensor provides an electrical signal that can be used to stop filling or initiate another predefined process action. Compatible with the VARIBOX FC 1000, FC 800 and CC 250, it provides a practical solution for integrating automatic full-level detection into your chemical filling process. Add automatic full-level detection to your VARIBOX and bring greater control to your filling process.
