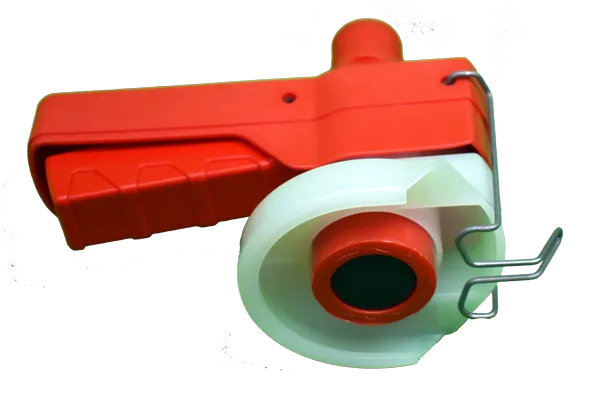

VARIBOX Safeline Coupler EPDM

One Secure Connection for Closed Chemical Transfer

The VARIBOX Safeline Coupler EPDM connects your pumping or process equipment to a VARIBOX Safeline Performance EPDM extractor tube. Once connected, the coupler creates a leak-tight interface that allows liquid product to move directly from the VARIBOX into your installation.

Safeline is designed around closed dispensing. The coupler and extractor tube work together as one connection, opening simultaneously when correctly connected. Product can flow towards the pump while air enters the container, without opening the VARIBOX during normal dispensing.

This helps keep chemicals and fumes contained and provides a controlled connection between the container and your process.

Designed for Safeline Performance EPDM

This coupler is specifically designed for the EPDM version of VARIBOX Safeline Performance and Precision.

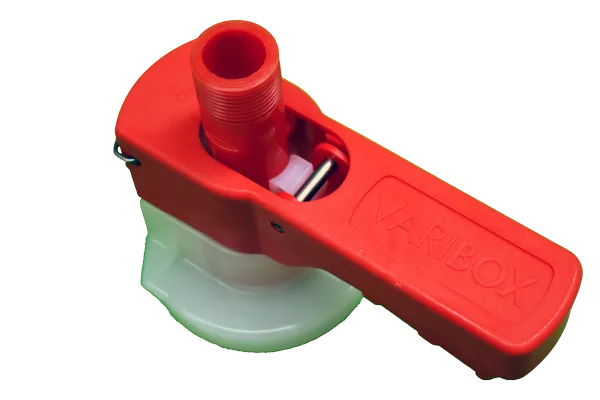

The EPDM Safeline system is easily recognisable by its red colour and round connection. The corresponding coupler follows the same colour and shape, making it easier to identify the correct components before connecting your equipment.

This physical distinction is an important part of the Safeline concept. VARIBOX also offers a Viton version, which uses a green, 12-angular connection. The different designs help prevent the wrong coupler from being connected to an extractor tube with a different sealing configuration.

For safe operation, always match an EPDM Safeline Performance extractor tube with the corresponding EPDM coupler.

From VARIBOX to Your Pumping System

The VARIBOX Safeline Coupler EPDM forms the connection between the VARIBOX and your external installation.

A flexible extraction hose connects the coupler to your pump or process equipment. When the coupler is attached to the Safeline Performance extractor tube, both components open and establish the product flow path.

The chemical can then be pumped from the lowest point of the VARIBOX inner container through the Safeline system and towards your process.

Because aeration takes place through the system during dispensing, the container can remain closed during normal operation. This reduces the number of manual actions required around the product and supports safer chemical handling.

Leak-Tight by Design

Reliable connections are particularly important when transferring hazardous or corrosive liquids.

The Safeline Coupler is designed to create a leak-tight connection with the corresponding Safeline Performance or Precision extractor tube. Keeping the transfer route closed helps prevent product and fumes from escaping into the working environment during normal use.

This makes Safeline particularly valuable in industrial environments where operators regularly connect containers to pumps, dosing installations or production processes.

The coupler should only be disconnected when there is no overpressure inside the VARIBOX. Any internal pressure must first be safely released according to the applicable operating instructions.

EPDM Configuration for Chemical Applications

The correct sealing configuration depends on the chemical being handled.

This coupler uses an EPDM configuration and is manufactured from EPDM, PVDF and Hastelloy. These materials are selected for demanding industrial chemical applications.

EPDM provides resistance to many commonly handled chemicals, but no sealing material is universally suitable. Compatibility should always be verified against the specific chemical, concentration, temperature and process conditions before use.

Selecting the correct configuration helps maintain both the safety and performance of the complete dispensing system.

Compatible Across the VARIBOX Range

A major advantage of the Safeline concept is its use across multiple VARIBOX solutions.

The Safeline Coupler EPDM can be used with the corresponding Safeline Performance EPDM extractor tubes for:

• VARIBOX FC 1000
• VARIBOX FC 800
• VARIBOX CC 250
• VARIBOX Drumtainer

This means the same coupler concept can be used across different VARIBOX capacities and containment solutions, provided the container is equipped with the matching Safeline Performance EPDM extractor tube.

For operations using several VARIBOX types, this can help create a more consistent connection method between chemical packaging and process equipment.

Safer Connections, Simpler Handling

VARIBOX Safeline Coupler EPDM is developed with everyday operation in mind. The connection point is positioned at the top of the container and the coupler provides a plug-and-play interface between the VARIBOX and your installation.

The clear EPDM identification, closed transfer principle and leak-tight connection all contribute to a straightforward dispensing process.

For operators, this means a recognisable connection method with fewer reasons to interact directly with the chemical inside the container.

Part of the VARIBOX Philosophy

The VARIBOX Safeline Coupler EPDM supports the VARIBOX principles of Safer, Reusable and Sustainable chemical packaging.

Safer

Closed transfer helps keep product and fumes inside the dispensing system. Clear identification of the EPDM connection also helps operators match the correct coupler and extractor tube before dispensing begins.

Reusable

The coupler is a separate part of the dispensing installation and works with compatible Safeline Performance extractor tubes across multiple VARIBOX types. Individual system components can be maintained or replaced when required without replacing the complete packaging solution.

Sustainable

Reusable chemical packaging works best as part of a complete system. Maintaining individual components and using a consistent dispensing connection across different VARIBOX configurations supports long-term use and more efficient management of packaging and equipment.

Connect Safely with VARIBOX Safeline

The VARIBOX Safeline Coupler EPDM provides the interface that turns a Safeline Performance-equipped VARIBOX into a closed chemical supply system.

Its leak-tight connection, recognisable red and round EPDM design and compatibility across several VARIBOX models make it a practical solution for industrial chemical transfer.

Connect your process equipment with the original VARIBOX Safeline Coupler EPDM for controlled, closed and reliable dispensing.
