VARIBOX Safeline Coupler Viton

A Reliable Viton Connection for VARIBOX Safeline

The VARIBOX Safeline Coupler Viton provides the connection between a Safeline Viton extractor tube and your external pumping or process equipment. Designed as an integral part of the VARIBOX Safeline system, the coupler creates a leak-tight connection for controlled chemical transfer.

Once correctly connected, the coupler and extractor tube open together. Product can flow from the VARIBOX towards the connected installation while air is allowed to enter the container. The VARIBOX can therefore remain closed during normal dispensing, helping keep chemical product and fumes contained.

For industrial applications where safe connections and correct material selection are essential, the Safeline Coupler Viton provides a dedicated interface from container to process.

Green and 12-Angular for Clear Identification

Connecting the correct components is critical when working with different sealing configurations.

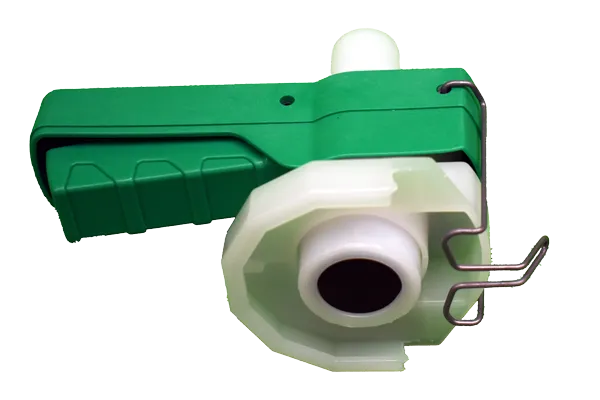

VARIBOX makes the Viton Safeline connection immediately recognisable through its green colour and distinctive 12-angular shape. The corresponding Viton extractor tube uses the same identification.

This physical distinction is more than a visual feature. It helps prevent a Viton coupler from being connected to an EPDM extractor tube. The EPDM Safeline configuration uses a red, round connection instead.

By combining colour coding with different connection shapes, VARIBOX makes it easier for operators to identify the correct Safeline configuration before chemical transfer begins.

Keep the Chemical Transfer Process Closed

The VARIBOX Safeline Coupler Viton is designed to connect your extraction hose or process installation directly to the VARIBOX.

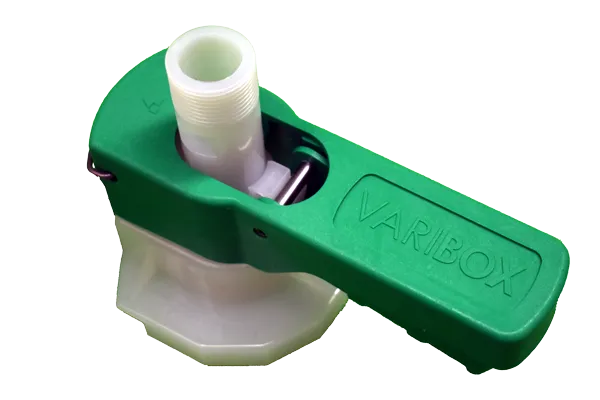

After the coupler has been positioned over the matching extractor tube, a metal clip secures the connection. Operating the handle then opens the extractor tube and establishes the product flow path.

The chemical can subsequently be pumped directly from the VARIBOX into the connected process without opening the container itself.

Keeping the transfer route closed helps minimise opportunities for chemical product and fumes to escape into the working environment and reduces unnecessary operator interaction with the contents of the container.

Built for Demanding Chemical Applications

The VARIBOX Safeline Coupler Viton is manufactured using PVDF and Hastelloy, materials selected for use in demanding chemical environments.

The Viton configuration is intended to be combined exclusively with the corresponding Viton Safeline extractor tube. Selecting the correct configuration is important because the chemical resistance of sealing and construction materials varies according to the substance being handled.

Chemical, concentration, temperature and operating conditions should therefore always be considered when determining whether the Viton configuration is suitable for a specific application.

One Coupler Across Multiple VARIBOX Solutions

The Safeline Coupler Viton is not limited to one VARIBOX size. The same coupler is used with compatible Safeline Viton extractor tubes across several VARIBOX solutions, including:

• VARIBOX FC 1000
• VARIBOX FC 800
• VARIBOX CC 250
• VARIBOX Drumtainer

This provides a consistent connection method for operations using different VARIBOX sizes.

As long as the container is equipped with the corresponding Viton Safeline extractor tube, the same coupler principle can be used to connect the VARIBOX to external pumping equipment.

Designed for Straightforward Daily Operation

Safeline has been developed to make connecting chemical packaging to process equipment logical and controlled.

The distinctive shape makes the correct Viton connection easy to recognise. The metal clip secures the coupler in position, while the handle controls the opening of the extractor tube.

This combination provides operators with a clear sequence for establishing the connection before pumping begins.

Correct installation of the extraction hose is also important. The hose should remain flexible and be positioned according to the VARIBOX operating instructions to avoid placing unnecessary force on the coupler.

Before connecting or disconnecting Safeline, any visible overpressure inside the VARIBOX must be safely relieved according to the applicable operating instructions.

Part of the VARIBOX Safety Concept

The Safeline Coupler Viton supports the wider VARIBOX principles of Safer, Reusable and Sustainable chemical packaging.

Safer

Safeline keeps the chemical transfer route closed between the VARIBOX and external equipment. The dedicated green and 12-angular Viton connection also helps prevent incorrect coupling with an EPDM system.

Together, these features support controlled chemical handling and help reduce unnecessary exposure to product and fumes.

Reusable

VARIBOX is designed as reusable industrial chemical packaging. The Safeline system complements this concept with dedicated components that can be inspected, maintained and replaced individually when required.

A reusable coupler can remain part of the customer’s pumping installation while compatible VARIBOX containers are connected and exchanged.

Sustainable

Reusable packaging and serviceable dispensing equipment help reduce dependence on single-use solutions.

Using compatible components across several VARIBOX configurations can also simplify the dispensing setup for organisations operating a reusable VARIBOX fleet.

The Right Connection for Safeline Viton

The VARIBOX Safeline Coupler Viton provides a dedicated connection between your process equipment and compatible VARIBOX Safeline Viton extractor tubes.

Its leak-tight interface supports closed chemical transfer, while the characteristic green colour and 12-angular shape provide clear identification of the Viton configuration.

Compatible across several VARIBOX solutions and designed for straightforward operation, it provides a reliable interface between reusable chemical packaging and your process.

Connect Safeline Viton-equipped VARIBOX containers to your process with the original VARIBOX Safeline Coupler Viton.
